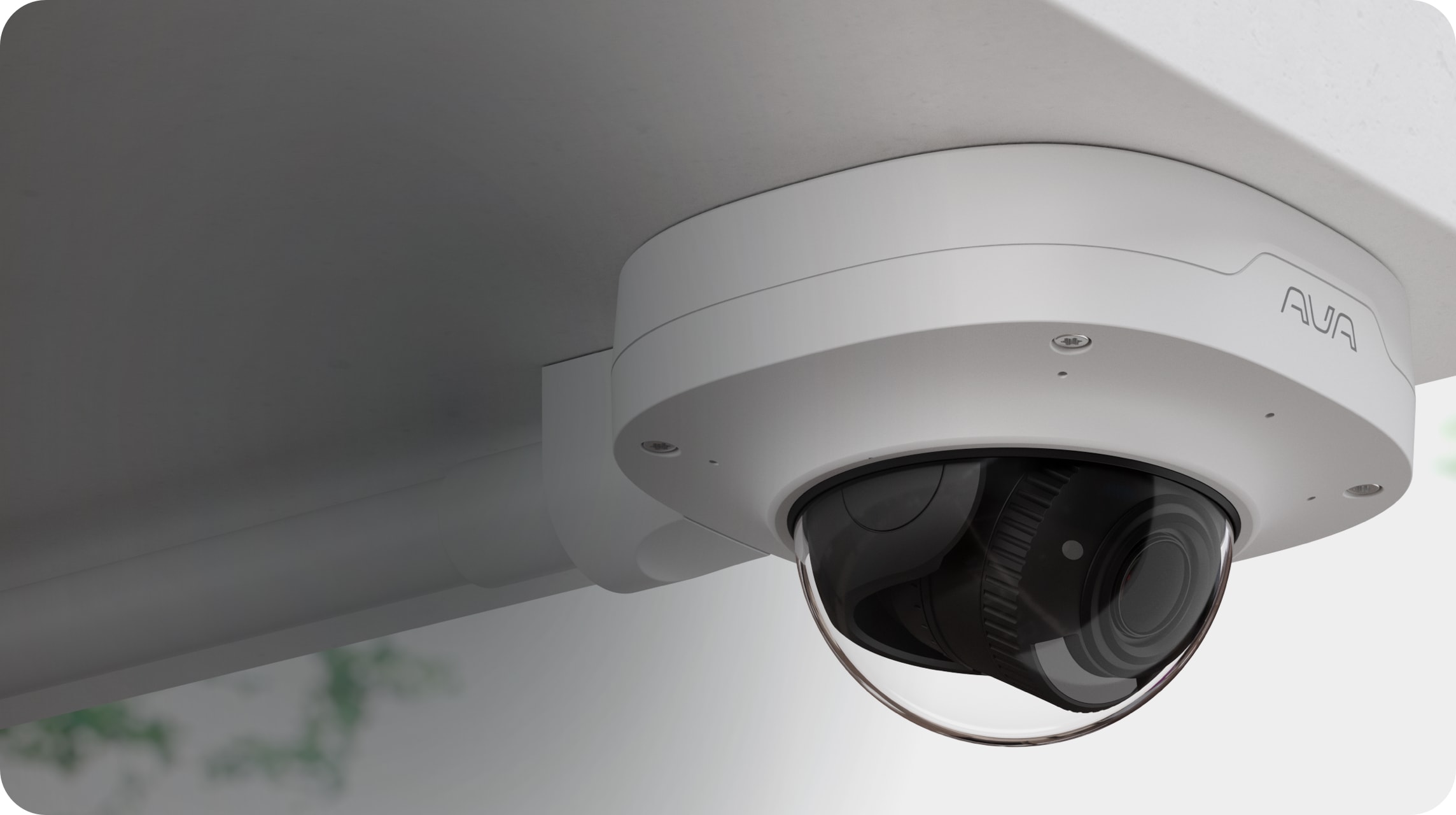

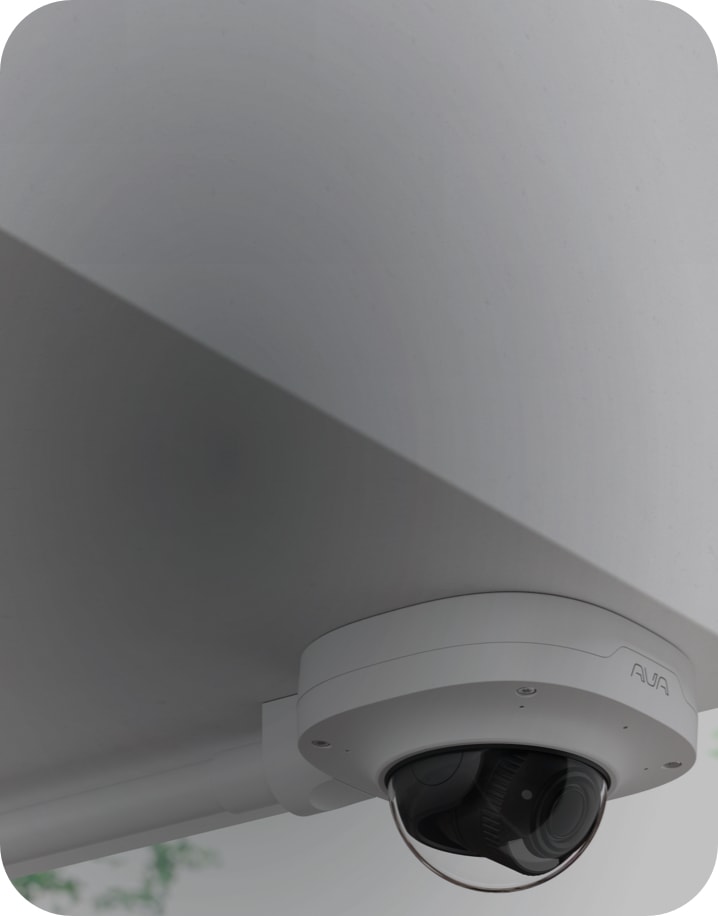

Ava Dome

Ava Dome
security camera

Control what you see with the cloud-connected 4K Dome security camera in any indoor or outdoor location.

Cloud-connected Dome security cameras

The AI-powered Dome security camera is versatile, robust, and effortless to install and manage, helping you focus on the events that require your immediate attention. Fit for both the harshest outdoor installations and discreet indoor environments, it captures every detail day and night, in all light conditions. Dome comes with built-in intelligent AI analytics, optional storage of up to 120 days of retention, and integrates seamlessly with the Ava Aware Cloud video management system

Say goodbye to centralized storage and analytics servers that need to be separately purchased, configured, and maintained. Unlike traditional CCTV cameras, Dome is easy to install and online within minutes. Its powerful video and audio analytics enable you to be truly proactive and detect threats before they turn into incidents. The Dome series is designed and developed in Norway and the UK.

  1. Vandal-resistant (IK 10) & outdoor-ready (IP66), perfect for any highly exposed deployment.
  2. The acoustic sensor delivers integrated directional audio analytics that identifies audio events and the direction to the source.
  3. High resolution, exceptional low light performance, and multi-exposure line-based HDR to capture every detail in the most challenging light conditions, irrespective of the environment.
  4. Unparalleled image processing, high-resolution video encoding, and computer vision via Ambarella’s system on a chip.

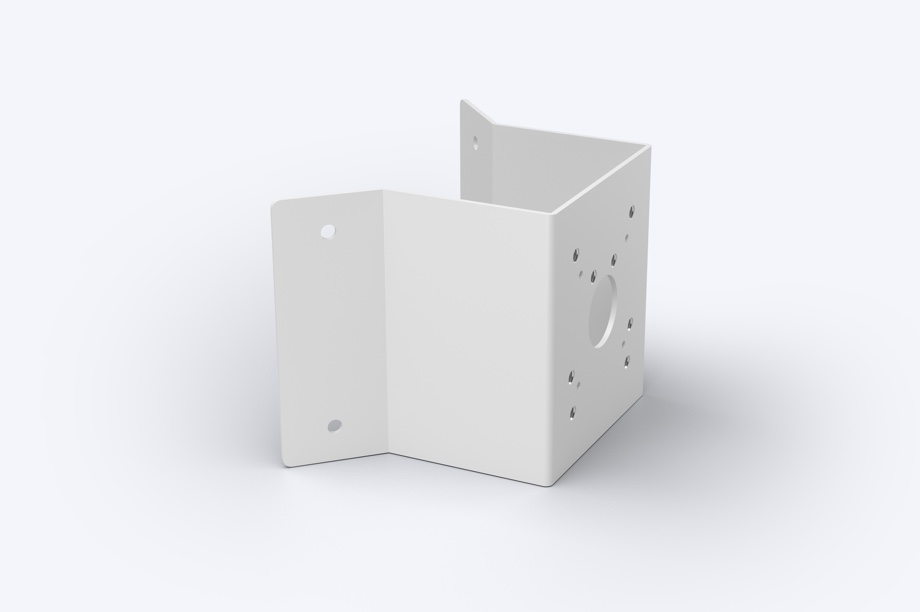

  5. Innovative mounting bracket and simple cable management, ideal for discrete installations or areas with reduced space.

The Dome series includes

icons-13

Seamless installation, use, and maintenance

viedo and audio analytics

AI video and directional audio analytics

cloud

Cloud-connected deployment

smart video and audio analytics

Monitor video smarter with threat detection in real-time

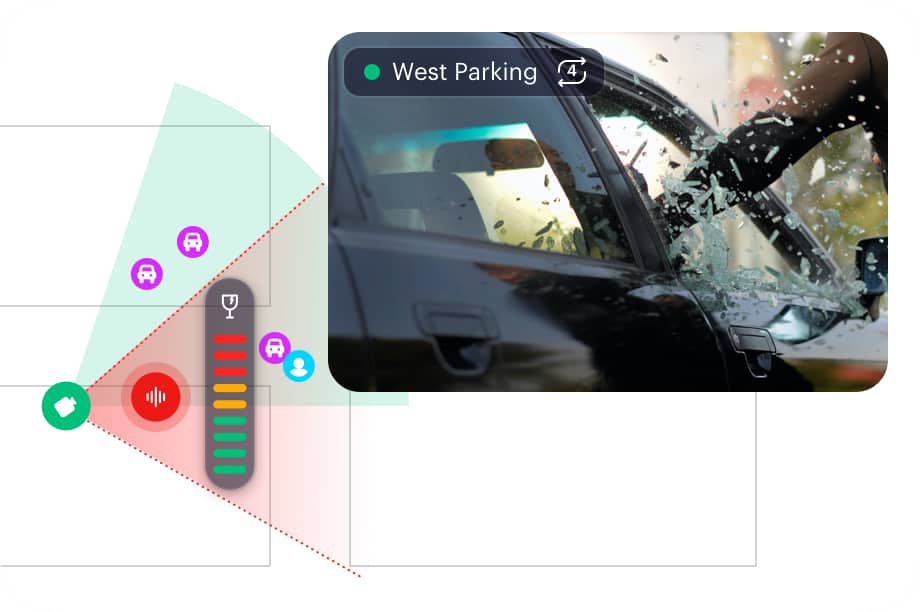

The Dome security cameras integrate advanced intelligence via image recognition, machine learning, and acoustics. Users can use them to detect anomalies in real time and to receive proactive notifications before threats escalate. The cameras also identify specific sound patterns, such as screaming, gunshots, breaking glass, smoke alarms, car alarms, loud noises, and ultrasound to determine the type of sound and direction.

One-click configuration

Deploy and add cameras online in minutes

It’s never been easier to add and configure security cameras to a deployment. Our plug-and-play configuration removes the need for usernames and passwords, pre-configuration set-up, or default settings. You can also scan the unique QR codes on the Dome cameras to onboard them to the Aware Cloud video management system. What’s more, Dome is equipped with an innovative mounting bracket and simple cable management, making it ideal for discrete installations or areas with reduced space.

img_smart-recording

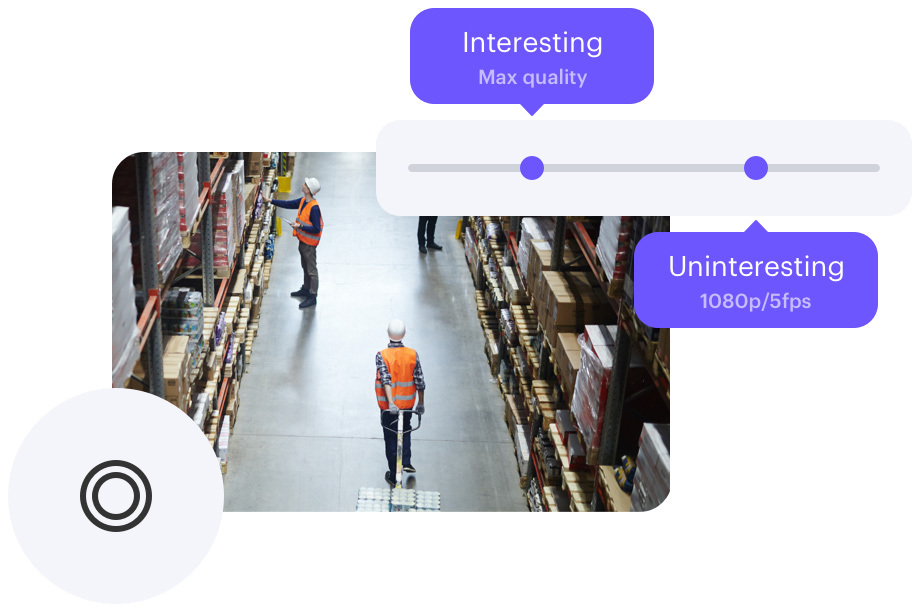

Enjoy a reliable and intelligent bandwidth optimization

Are you worried about the storage costs for your video footage while preserving all the forensic details you might need to solve cases? Dome is an intelligent video security camera that uses analytics to determine what video to record. It allows users to configure different resolutions to be used when our machine learning analytics consider the video to be either interesting or not. In addition,  the camera can dynamically vary the bitrate within a stream based on object detection. This allows it to show the areas of interest more clearly. Together, these mean you need less storage and less bandwidth on playback while keeping the quality where and when you need it.

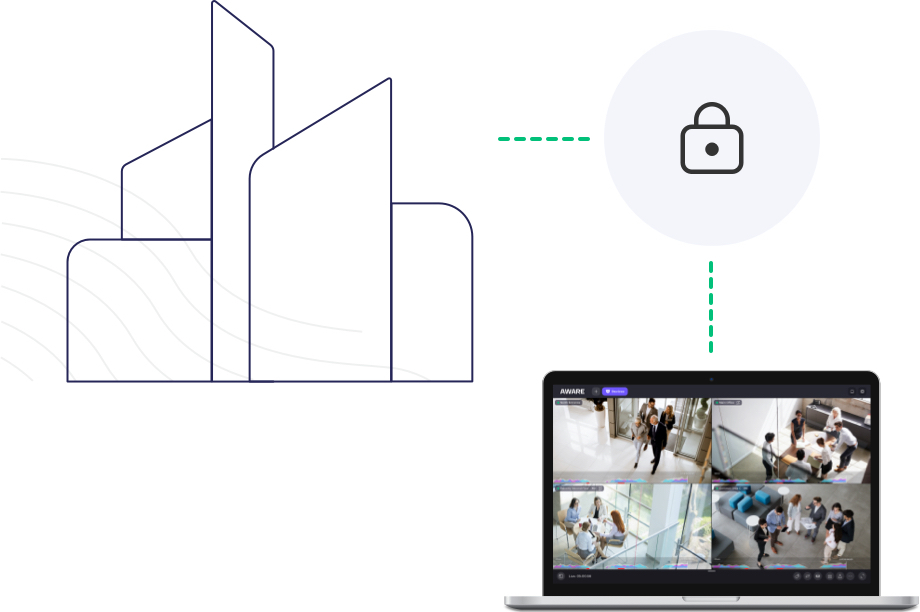

always-on security

Stay protected from cyberattacks

Cybersecurity is no longer a concern but a built-in feature of the Dome series. With factory-installed certificates, camera passwords set at initialization, and end-to-end encryption, our cameras are the most secure on the market. Dome is equipped with a Trusted Platform Module (TPM) to provide a secure encryption key storage for each camera. Software upgrades are seamless and instant, with continued access to regular automated system performance checks. What's more, Dome cameras are built and designed in Europe, America, or Taiwan.

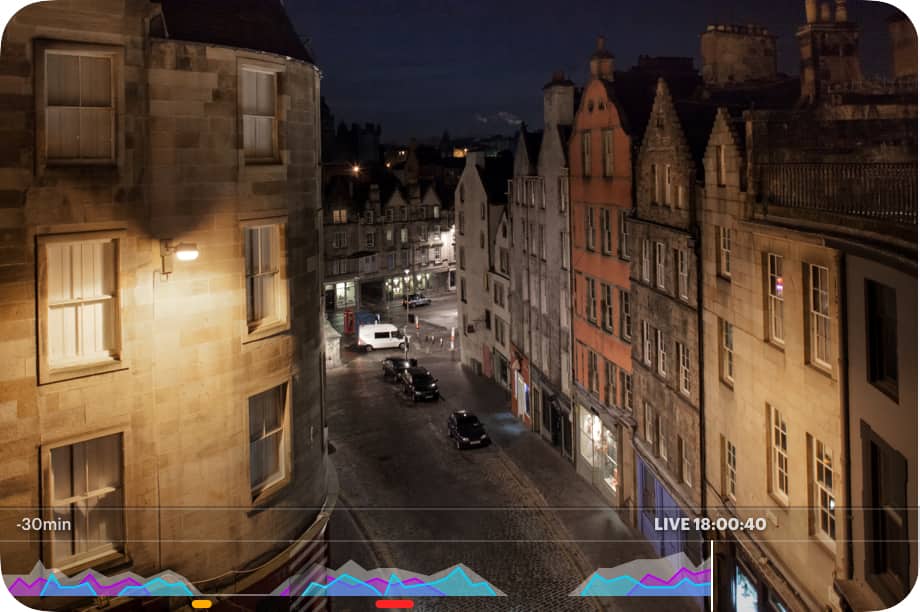

Capture outstandingly clear and sharp details in any environment

For any environment

Mounted outdoor or indoor, Dome is suitable for all your environmental needs. Built using robust, high-quality materials, our camera is vandal-resistant yet discreet, blending into any installation type. Dome is a 4K camera that includes an ƒ/1.5-ƒ/2.8 aperture, a focal length of up to 10mm, and multi-exposure line-based HDR to deliver the best image quality even in low-light conditions or complete darkness.

ava-dome-specs--2x
ava-dome-specs--2x
ava-dome-specs-mobile--2x
  • Edge
    analytics
  • Remote zoom
    and focus
  • Image sensor
    4K (8MP)
  • Horizontal field of view
    100°-45°
  • Lens
    3.6-10mm
  • Indoor, outdoor,
    and rugged

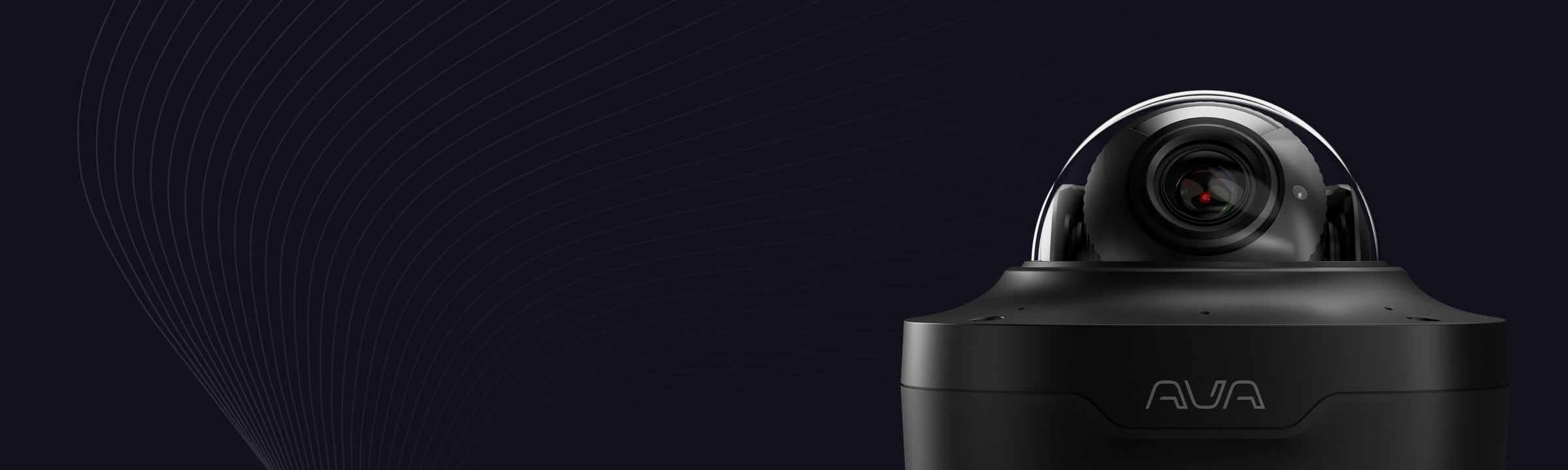

specs-dome-header--2x

Ava Dome
Specifications

  • Lens

    Focal length: 3.6-10mm
    Aperture: ƒ/1.5-ƒ/2.8
    Remote zoom and focus
    P-iris

  • IR night vision

    Automatic night mode
    IR-cut filter
    IR range: 30m
    850 nm IR LED

  • Minimum illumination in color mode

    0.15lux

  • Field of view

    100°-45° Horizontal
    53°-25° Vertical

  • Maximum resolution and frame rate

    3840x2160@30fps

  • Dynamic range

    WDR

  • Video compression

    H.264

  • Audio

    Microphone array (4x microphones)
    AI audio event classification
    Audio source localization

  • Security

    Factory-installed certificates
    No default passwords
    Mandatory access authentication
    HTTPS/TLS encryption

  • Network protocols

    IPv4, HTTPS, TLS, DNS, mDNS, DNS-SD, NTP, RTSP,

    RTP, RTCP, ICMP, DHCP, ARP
    Streaming: RTP/UDP, RTP/RTSP/, HTTPS/TCP

  • Power source

    PoE+ (802.3at Type 2)
    For installation only: USB-C (1.5A mode)

  • Power consumption

    Typical: 5 W
    Max without heater: 12.95 W
    Max with heater: 23 W

  • Storage

    MicroSD
    SDXC UHS-I

  • Connection

    802.3ab 10/100/1000 Gigabit Ethernet
    USB-C for preview and setup

  • Installation aid

    Electronic leveler. Flexible bracket, mounts to standard back boxes. Refer to technical drawing.

  • Impact resistance

    IK10 (IEC/EN 62262)

  • Water protection

    IP66 (IEC/EN 60529)

  • Temperature

    Operating -25C to +50C
    Storage -40C to +60C
    Heater: 9.6W

  • Physical characteristics

    Dimensions: 152x152x96mm
    Weight: 1.2 kg
    Body: Aluminum
    Adjustment range: Pan, Tilt, Azimuth

Enhance visibility with powerful AI features and valuable insights

map-view

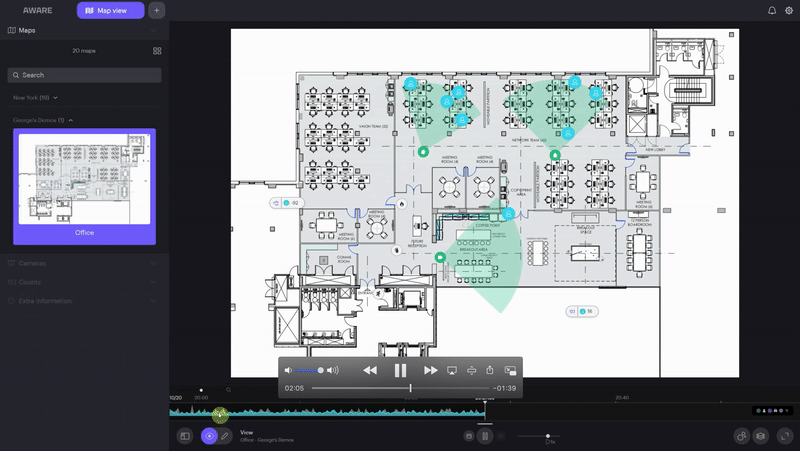

Map view with Smart Presence™

Operators can add maps of all your locations to gain more situational awareness and insights. Each map can be configured and includes camera and alarm views, along with the ability to track people and objects as they move on your premises.

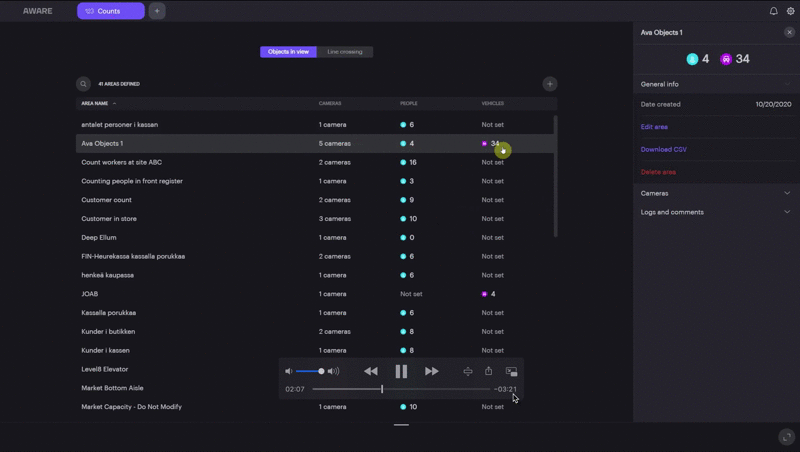

object-counting

Occupancy counting

With occupancy counting, business analysts, security operators, and administrators can monitor large facilities and keep a rolling total of the current occupancy of people and vehicles in defined locations, enabling, e.g., staff and stock optimization, social distancing, and more.

aware-heatmap-video-view

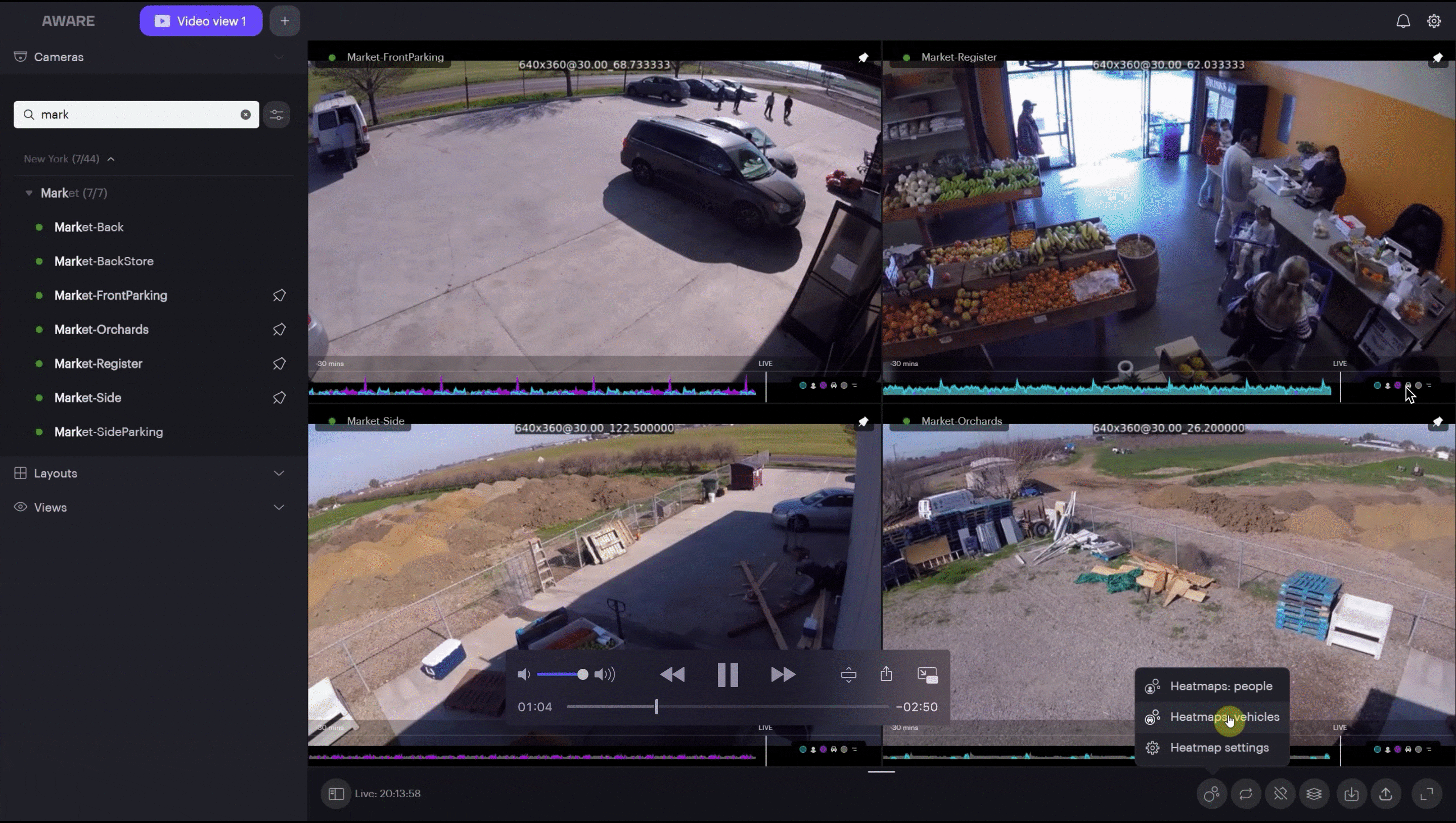

Heatmaps

Heatmaps are ideal for gaining more insights into retail, healthcare, schools and other educational facilities, public venues, hospitality locales, public transport, or federal government premises. The tool provides an enhanced awareness of customer behavior, dwell times and congestions, transportation flows, suspicious activities, and more.

smart-search

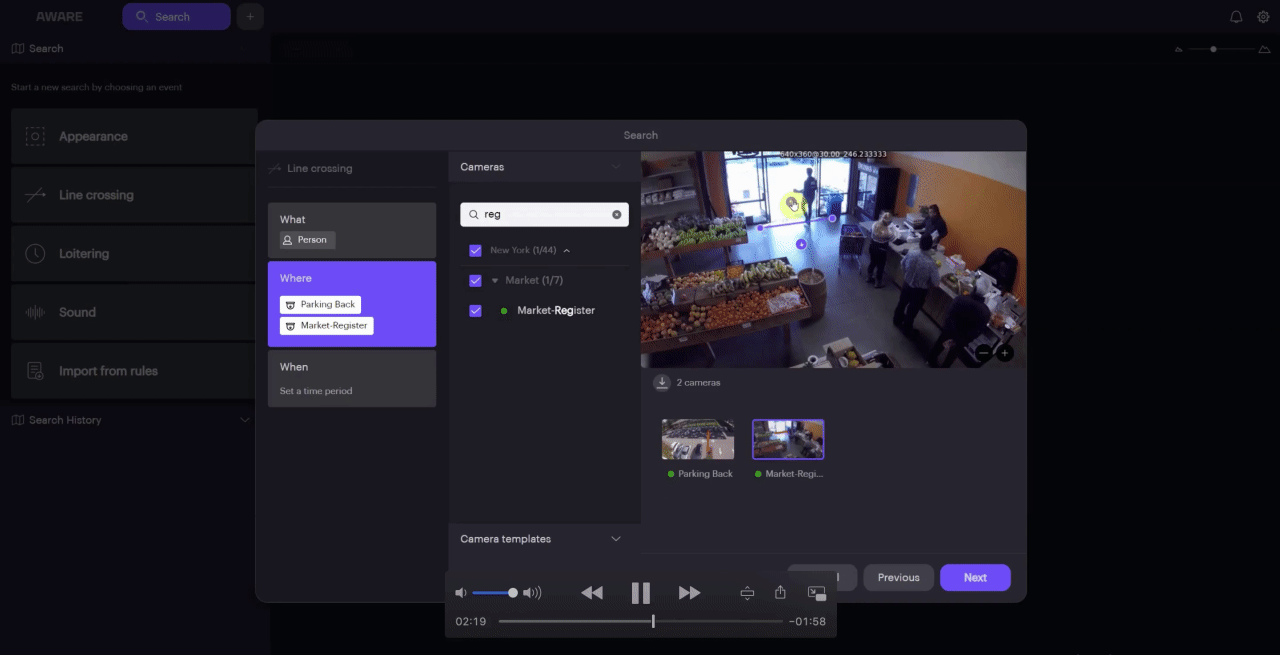

Smart Search™

Reduce forensic investigation time and gain efficiency and accuracy with the same number of operators using machine learning-powered searching. Search by event and similarity to perform appearance and image detection. With Smart Search, it is possible to quickly comb through countless hours of video across your entire implementation.

real-time-alerts

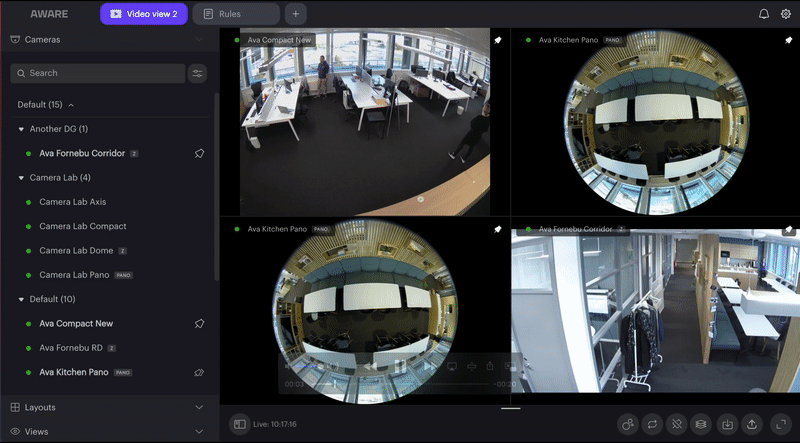

Alerts and notifications in real time

Use rule-based templates to define notification scenarios where you will be alerted once a specific event occurs, such as loitering, line crossing, fire exit access, and more.

Certifications and awards

  • ISO 27001 certified

    This certification ensures our commitment to good security culture, processes, and technology.

    Blog post
  • Red Dot Award Product Design winner

    Ava Cameras won the Red Dot Product Design Award, recognizing high design quality by standing out from established norms in the video surveillance market with a blend of precise shapes and softened surfaces.

    Press release
  • Red Dot Award Smart Product winner

    The Ava Cloud Video Security solution won an award in the “Smart Products” category, demonstrating high design quality and an innovative approach to video security solutions.

    Press release

Contact sales for questions or a live video security demo
